C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar

Get high-quality C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar directly from our factory. We offer superior products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Chemical Composition
  • Detailed Photos
  • Company Profile
  • Recommend Product
  • FAQ
Overview

Basic Info.

Model NO.
C5191
Standard
ASTM
Origin Place
Made in China
Surface Require
Bright,Polish
Trade Term
EXW,Fob,CIF
Delivery Time
in 10-50 Days
Heat Treatment
Quenched,Tempered,Annealed
Delivery Condition
Hot Rolled,Cold Drawn,Forged
Transport Package
Seaworthy Packing,Wooden Case,Carton,Woven Bag or
Specification
Length: 3000mm-6000mm
Trademark
DONGBEI SPECIAL STEEL
Origin
Liaoning
Production Capacity
50000tons/Year

Product Description

Product Description

We provide all kinds of bronze bar such as Phosphor Bronze, Aluminum bronze, Tin bronze and Beryllium copper.

Phosphor bronze It combines very good cold workability with high strength and hardness. The alloy is corrosion resistant and can be well soldered and brazed, yet it still has good electrical conductivity.

Aluminum bronze is a pale gold-colored alloy composed of copper and usually five to ten percent aluminum,usually especially for corrosion-resistant parts, for wear-resistant bearings, bushings, gears.

Tin Bronze is a versatile material family known for corrosion resistance with higher strength.

Beryllium copper  is an age-hardening alloy that attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms, or complex shapes. It is valued for its elasticity, corrosion resistance, stability, conductivity, and low creep.

Technical parameters
Material C5191 Bronze round bar
Size Diameter:5mm-1000mm
Length:3000mm-6000mm
Origin place Made In China
Delivery Condition Hot rolled,cold drawn,forged
Surface require Black,grinding,bright,polish,turn,peel
Heat treatment Quenched,Tempered,annealed
Packing seaworthy packing,wooden case,carton,woven bag or at client's requires
Delivery time In 20-30 days
Trade Term EXW,FOB,CIF
Payments T/T or L/C at sight
Port China main Port,such as shanghai, Dalian, shenzhen port.


Chemical Composition


Phosphor Bronze Chemical Composition (%)
ASTM JIS Din BS Cu Sn P Zn Fe Pb
C50500 - - - Rem 1.0-1.7 0.03-0.35 0.3 0.1 0.005
C51100 - CuSn4 PB101 Rem 3.5-4.9 0.03-0.05 0.3 0.1 0.05
- C5191 CuSn6 PB103 Rem 6.0  0.2 - - -
- C5210 CuSn8 - Rem 8.0  0.2 - - -

Tin bronze Chemical Composition (%)
ASTM Cu Fe Ni Al Mn Pb Si Sn S Zn Sb P
C90300 86.0-89.0 0.2 1.0  0.005 - 0.3 0.005 7.5-9.0 0.05 3.0-5.0 0.2 0.05
C95400 ≥83.0 3.0-5.0 1.5 10.0-11.5 0.5

 Aluminum bronze Chemical Composition (%)
ASTM Din Cu Fe Pb Al Si Ni Mn Zn Sn Other
C61000 CuAl8 ≥92 ≤0.5 ≤0.02 6.0-8.5 ≤0.1 - 1.5-2.5 ≤0.2 ≤0.1 ≤0.5
C63000 CuAl10Ni5Fe4 ≥82 ≤3.0 - ≤10.0 - - - - - -
C63020 CuAl11Ni6Fe5 ≥74.5 4.0-5.5 ≤0.03 10.0-11.0 - 4.2-6.0 ≤1.5 ≤0.3 ≤0.25 -

Beryllium copper Chemical Composition (%)
ASTM Din Cu Co Be Al Si Fe Ni
C17200 CuBe2 Rem ≥0.2 1.8-2.0 ≤0.2 ≤0.2 - -
C17500 CuCo2Be Rem 2.4-2.7 0.4-0.7 0.2 0.2 0.1 -
C17510 CuNi2Be Rem 0.3 0.2-0.6 0.2 0.2 0.1 1.4-2.2

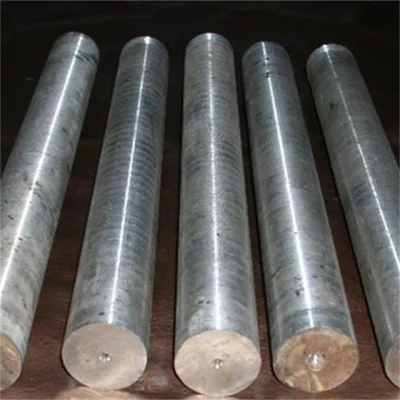

Detailed Photos

C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar




C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar




Company Profile

SICHUAN LIAOFU SPECIAL STEEL COMPANY.,LTD

Sichuan Liaofu Special Steel Company.,Ltd was established in 2001, specialized in special steel production and inventory as the main business. In 2004, our company Chairman Mr.Mike Guo purchased a batch of advanced equipment for the production of hot rolled and forged products.After several years of development, our company has gradually formed a complete production and operation system of smelting, refining, forging , heat treatment. Meanwhile we began to expand overseas markets and Obtained the national export license and the customs certificate since 2005. In 2007, we concluded the first export order. For satisfying customers' extensive demands,We have set up a sales department for rare metals such as titanium and copper in 2009.
We has state-of-the art production lines with leading-edge technology for bearing steel 100Cr6, stainless steel 304 / 316 / Duplex
UNS S31803 and Super Duplex UNS S3276, alloy steel 4130/4140/8620 ,high speed tool T1/M2/M35/M42 and die steel D2/D3/H13/H21/P20,The products covers special steel round, square, flat, wire rod, wire, sheet, pipe, strip and heavy forgings.Produces forged round steel (¢120~850mm) and square steel (120~550mm) of various steel grades. The largest production steel ingot 13T, mainly forged alloy steel. The annual output of forged round can reach 60,000 tons.
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar

C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar

C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar
C5191 Cusn6 Pb103 Phosphor Bronze Brass Rod Copper Bar


Recommend Product

We Have State Of The Art Production Lines With Leading Edge Technology For Bearing Steel 100Cr6, Stainless Steel 304 / 316 / Duplex UNS S31803 And Super Duplex UNS S3276, Alloy Steel 4130/4140/8620, High Speed Tool T1/M2/M35/M42 And Die Steel D2/D3/H13/H21/P20. The Products Covers Special Steel Round, Square, Flat, Wire Rod, Wire, Sheet, Pipe, Strip And Heavy Forgings. Produces Forged Round Steel (¢120~850mm) And Square Steel (120~550mm) Of Various Steel Grades.

Alloy Steel
4140,4142,42CrMo4,1.7225,SCM440,4130,SCM430,25CrMo4,1.7218,34CrNiMo6,
1.6582,4340,SNCM439,36CrNiMo4,1.6511,SACN645,1340,SMn438,SNC236
Tool Steel
H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419,
SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2
Bearing Steel
GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50
Spring Steel
9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150,
SUP10,51CrV4,1.8159
Stainless Steel
321,sus321,1.4541,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028,
434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according toquantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.lf you have another question, pls feel free to contact us.
