Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

We are a factory specializing in manufacturing and supplying Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper. Get high-quality products at competitive prices.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Certifications
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
Beryllium Copper
Standard
ASTMB
Transport Package
Carton or Wooden Case
Specification
0.01mm-10mm
Trademark
DLX
Origin
Changzhou, Jiangsu, China
HS Code
7506100000
Production Capacity
1000kg Per Week

Product Description

Manufacturer C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Product Description

C17200 C17500 QBe2 BeCu Beryllium Copper Alloy Strip/Coil/Foil

Physical Properties
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980 °C
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.

Applications:
1). Electrical Industry: Electrical Switch and Relay Blades
2). Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors
3). Contact Bridges, Belleville Washers, Navigational Instruments
4). Clips Fasteners: Washers, Fasteners, Lock Washers
5). Retaining Rings, Roll Pins, Screws, Bolts Industrial: Pumps, Springs,
6). Electrochemical, Shafts, Non Sparking Safety Tools, Flexible Metal Hose,
7). Housings for Instruments, Bearings, Bushings, Valve Seats, Valve Stems,
8). Diaphragms, Springs, Welding Equipment, Rolling Mill Parts,
9). Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Wear Plates on Heavy Equipment.

More Products:
More range of copper and copper alloys, in full series of shapes: Sheet, Rod, Pipe, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
CuCoNiBe (CuCo1Ni1Be, 2.1285, CW103C)
C15000,/150, C18000/180, C18150/181, C18200/182
CuZr, CuNi2CrSi, CuCr1Zr, CuCr

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Product Name
0.08-2mm Thickness Alloy 25 Beryllium Copper strips
Material
Beryllium Copper Alloys
Composition
Be 1.86%      Co+Ni 0.265%       Fe 0.06%       Co+Ni+Fe 0.325%       Cu Balance
Shape
Roll//Strips/coils
UNS/CDA
UNS: C17200, CDA: 172
ASTM
B194
AMS
4530, 4532
RWMA
Class 4
Temper
A(TB00), 1/4H(TD01), 1/2H(TD02), H(TD04)

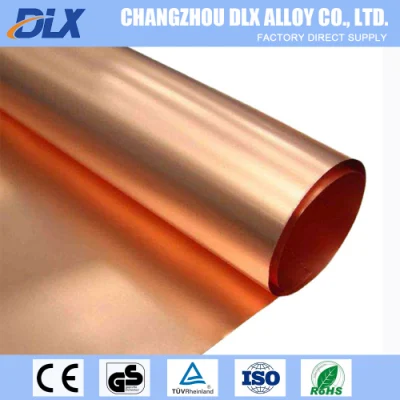

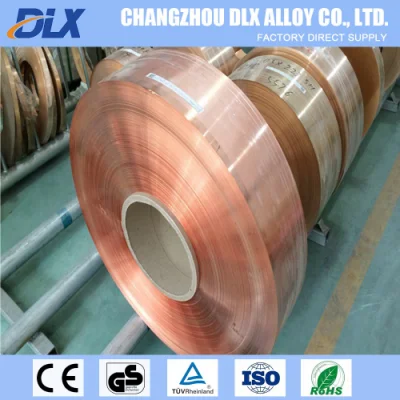

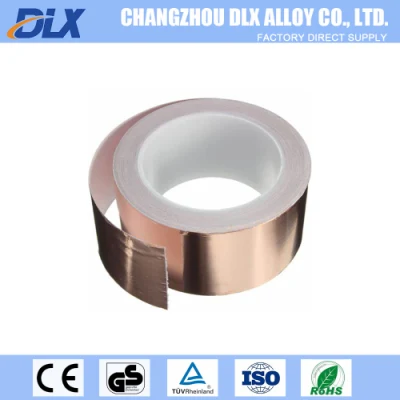

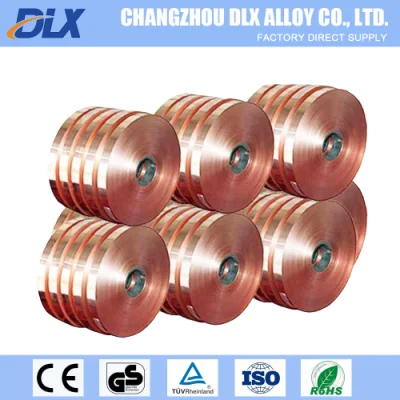

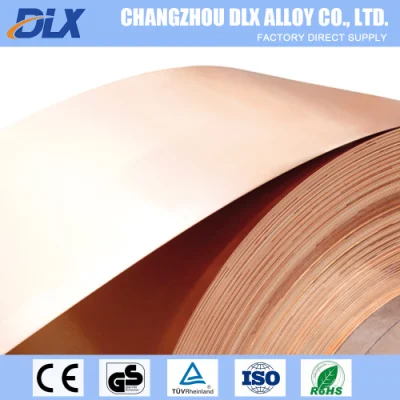

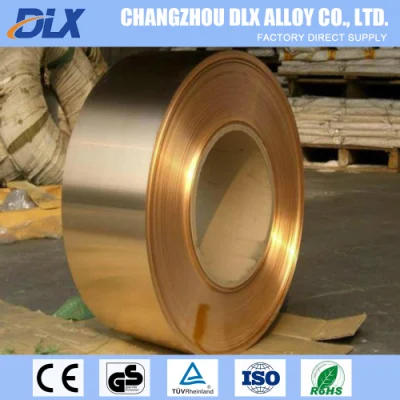

Detailed Photos

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium CopperFacturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper





Certifications
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper



Company Profile

Our company Principle is  " Quality first, Customer first".
CHANGZHOU DLX ALLOY CO, LTD was established in 2002 and has got Iso9001 International Quality Management System Certificate and SGS Certificate. Our factory is professional in researching and producing special alloy material. From melting, drawing, heat treatment, finishing and testing .We offer nickel-based, copper-based, and iron-based alloys, including super alloy, welding materials, anti-corrosion alloy, precision alloy, FeCrAl alloy, NiCr alloy, CuNi alloy, thermocouple and etc, in the form of wire, strip, ribbon, bar, tube, plate.

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

1, We're able to design and develop the product what our customers require and meet their requirements through providing the appropriate engineering drawings or samples.
2, We can provide the products within a week after payment.
3, Wecan provide sample of the products customer need.
4, We always insist on "
Quality first, Customer first
" as our business philosophy.

Packaging & Shipping
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper
Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper




Facturer Direct C17200 C17300 C17510 Qbe2 Alloy Strip Foil Sheet/Plate Beryllium Copper

FAQ

Question: Are you a trading company or manufacturer?
Answer: We're manufacturer.

Question2:  Could you help to design the product?
Answer:  Yes, we have excellent R&D team, OEM/ODM orders are all welcome.

Question: Could you supply samples?
Answer: Yes, wecould supply samples according to your requirement.

Question: could we visit your factory?
Answer: Sure, factory visit is warmly welcome.
