Product Description

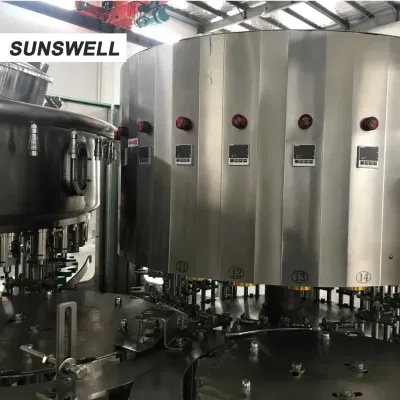

Sunswell PE Bottled Dairy Products with Aluminum Foil Sealing
This PE bottle filler capper is special designed for PP or PE bottled drink, such as juice and dairy product, bottle enter into rinser
through inlet screw and turning upside down gripper, then to washing angle of the circle, after washing(time is adjustable) to filler
through transit star wheel, then the filling turret push the bottle up to filling valve through cam rail, then to foil seamer(inline make
the foil cap), the seamer with the opition of induction seal and heat seal.
Features:
1) The machine has compact structure, complete control system, easy operation and high degree of automation
2) To change bottle shape, the operator only needs to replace the star-wheel, inlet bottle screw and arc guide plate
3) The parts contacting media are made from 304and have no process blind angles to enable easy cleaning
4) High speed filling valve, guarantees liquid has precise level and no waste is incurred
5) The capping head applies a constant magnetic torque device to secure capping quality and prevent damage to the bottle cap
6) The control system has the function of control producing speed, cap shortage detection, bottle block auto stop and production
counting
7) The machine applies a highly effective cap arranging system that has complete self control and protective device
8) The machine is equipped with a complete overload protection device that can secure equipment and the operator effectively
9) Main electric components and pneumatic components apply world famous brand products
10) The machine's operation is controlled by an advanced touch-screen
Main futures:
1. Bottle infeed by combination of air conveyor and infeed screw. Equipped with bottle jam protection device.
2. Composed by Dispenser, rinsing clamp, rinsing water recycle, there is a fixed rinsing time, the empty bottle was held by a
fixed track, rinsing, drying, then reaches the cleaning purpose.

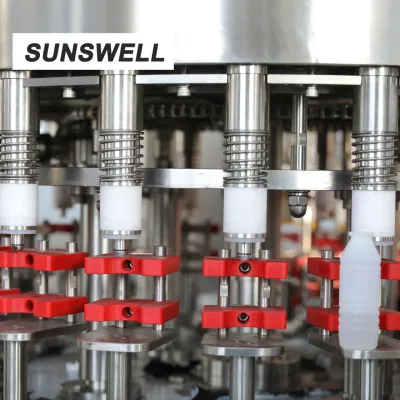

3. The design of filling structure is reasonable and without hygiene dead angle,the run of equipment is stable,the control accuracy
is within ±2mm. The filling valve material is SUS304, The filling system has liquid level automatic control. Filling valve lift is
controlled by the valve elevator,after filling valve contact the bottleneck ,it start to fill. Bottle is conveying by the wheel in the filling part.
Machine Capacity:
3-in-1 Wahing Filling Capping for PE Bottle
No | Model | Capacity |
1. | 10-10-1 | 5000bph |
2. | 16-12-2 | 7000bph |
3. | 24-16-2 | 12000bph |
4. | 32-28-3 | 15 000bph |
5. | 40-36-4 | 24000bph |
4-in-1 Washing washing filling capping for PE Bottle
No | Model | Capacity |
1. | 10-10-10-1 | 5000bph |
2. | 16-16-12-2 | 7000bph |
3. | 24-24-16-2 | 12000bph |
4. | 32-32-28-3 | 15 000bph |
5. | 40-40-36-4 | 24000bph |
About Sunswell
Sunswell Machinery leads the market in the field of machinery with advanced technologies in terms of our beverage packaging.
We provide a wide range of beverage packaging products. Our machinery has the most comprehensive scope.
We enjoy worldwide praise with 10 years of global marketing experience. We have a large number of customers worldwide
and we have various end products.
Our product range covers all types of machinery for the packaging of liquid, including water, tea, juice,carbonated soft drink, energy drink, alcoholic drink, beer, edible oil, dairy products, etc. We provide good quality and technology from raw material to bottled liquid. We are a good supplier, well known for developing innovative high-end products and new technologies.
Our company offers a complete portfolio of support and consulting services, from project engineering to customized solutions
nd after-sales derives. We also provide production optimization, training and advisory services, even end product development.
We are looking forward to establishing relationships with you in the near future.
Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage
filling
and packagingmachines. We offer turnkey solutions with more than 10 years experience.
Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.
Q3: What is your delivery time?
A3: Normally 20-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.
Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines
If needed.
Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.
Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send two years enough easy broken spare parts together with the machines for free, we will aslo suggest you
buy more units to save international courier such as DHL, it is really costly.
Q7: What is your guarantee?
A7: We have two years guarantee and life-long technical support. Our service also including machine maintence.
Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.
