Basic Info.
Product Description

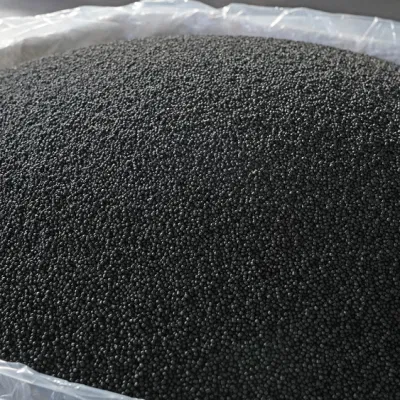

The product uses modified polyolefin resin as the main raw material and it is obtained by mixed, extruded and granulated with various additives. It has good processing performance, excellent physical&mechanical properties, and low temperature resistance property.
Standard: EN50264
Application: Control and power cables for railway rolling stock.
(Irradiation / E-beam) HFFR / LSZH | ||||||||
Automotive Wire | Energy | Railway | ||||||
Product code | 5511 | 5521 | 5822 | 5832 | 5822CN | T045 | ||
Standards | Test method | ISO 6722 | ISO 6722 QC/T 1037-2016 | TÜV 2 PfG 2693 | EN 50264 | |||
Tensile strength (Mpa) | IEC 60811-1-1 | 15 | 13 | 10.5 | 10.5 | 10.5 | 11.3 | |
Elongation at break (%) | 220 | 260 | 350 | 350 | 260 | 235 | ||
Thermal aging | Test condition (ºC'h) | IEC60811-1-2 | 135'168 | 150'168 | 150'240 | 170'240 | 150'240 | 158'168 |
Tensile strength variation (%) | -15 | -12 | -8 | -10 | -11 | -18 | ||
Breaking elongatior variation (%) | -12 | -10 | -17 | -18 | -22 | -17 | ||
Thermal shock (150ºC'5kg'1h) | No cracking | |||||||
Low temperature performance (ºC) | -40 | 40 | -40 | -40 | -40 | -42 | ||
Hot set @200ºC 15min, 0.2Mpa | Elongation inder the load (%) | IEC 60811-2-1 | 15 | 13 | 13 | 11 | 12 | 11 |
Permanent deformation after cooling (%) | 0 | 1 | 0 | 0 | 0 | 1 | ||
High temperature pressure test | Test condition (ºC'h) | 125'4 | 150'4 | 125'4 | ||||
Indentation depth (%) | 16 | 14 | 13 | |||||
Thermal shrinkage @130ºC, 1h(%) | 0.8 | 1.1 | 0.9 | 0.8 | ||||
Volume resistivity @20ºC (Ω*cm) | ASTM D257 | 2×1014 | 6×1015 | 1.0×1014 | 2.0×1014 | 2.0×1014 | 2.0×1014 | |
Dielectric strength @20ºC (MV/m) | IEC 60263-1 | 25 | 26 | 23 | 16 | 19 | 26 | |
Smoke density | Flame | 63 | 67 | 66 | ||||
Flameless | 121 | 136 | 130 | |||||
Oxygen index (%) | 30 | 31 | ||||||
Abrasion esistance test | Pass | Pass | ||||||
Corrosion test | pH | 6.1 | 5.9 | 6.1 | 5.8 | 6.3 | 6.1 | |
Electrica onductivity (μs/mm) | 1.6 | 1.8 | 1.6 | 1.5 | 1.6 | 1 | ||
Halogen acid gas content (mg/g) | 0 | 0 | 0 | 0 | ||||
Toxicity Index | 1.1 | 1.2 | 1 | 1.1 | 1 | 2.6 |
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00LaBveQVFHocT/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00PEBvMphYObca/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00HaCvMVhlHqbE/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00DECvMehsnbca/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00htevMzlIYkbE/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00VtevBilCCoka/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00VteBCMilCqcQ/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
Nanjing Zhongchao New Materials Corporation is a leading polyolefin compounds manufacturer in the power and telecommunication industry since its establishment in 2011. We garnered clients worldwide, earning Export Excellence Award and showcasing our international success. Our commitment to green innovation and delivering client profits drives our goal to be China's top provider of polyolefin and polyethylene compounds. To all our valued clients, we warmly welcome you to visit Zhongchao and witness firsthand the excellence of our high-quality compounds and solutions.
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00baMvCBWqnokE/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
![Provide XLPE Granules and Cross-Linked Polyethylene Masterbatch Used to Make Radiation Cross-Linked Sheath](http://img6.grofrom.com/www.kanametalshop.com/226f3j00ktMveFhyLbcE/Provide-XLPE-Granules-and-Cross-Linked-Polyethylene-Masterbatch-Used-to-Make-Radiation-Cross-Linked-Sheath.webp)
Quality Objectives
Zero defect
On-Time delivery
Zero customer complaint
Quality Assurance:To satisfy customers' requirements
To achieve"Zero-defect" goal.
Production Management:
Quality is made by production not by Q.C.
Responsibility
Abide by government rules, establish low-emission working condition, reduce pollution in circumstance, improve anti-pollution measures, save energy, reduce percent of defective products, ensure products quality and safety. Make sure water resource clean, keep worker's health to establish perfect healthy policy.
The Mission of R&D center is to create best plastic solutions for Wire & Cable Manufacturers
We have a high-quality research and development team,equipped with complete test equipment testing center and pilot plant, to the greatest extent possible to meet customer demand .
Customized product development
Customised product development depends on your needs. Our new material products are manufactured to meet your technical specifications.
New design and product development
New design and product development is more project-oriented where we create new products with new properties to anticipate and meet future customer trends. There are two new types of compound we are focusing on which can used in Solar battery insulation wire,Shipboard , Telecom Cables and High speed train. It is supposed to be released in the middle of next year.
University Cooperation
Further value will be created via cooperations with customers and universities. We have cooperated with XiAn JiaoTong University and Harbin University of Science and Technology.ZCNM provide annual scholarships and internship opportunities to high performing postgraduate and undergraduate students within these fields. The Innovation Centre will respond to market needs and enhance education and know-how in plastic new material development .The Innovation Centre brings scientists, engineers and technicians together to ensure that Zhongchao products continue to provide the best value to our customers.
